2-channel CV dimmer with DALI2/PUSH input

2-channel constant voltage LED dimmer with isolated DALI2/PUSH input and PWM voltage output, ideal for controlling low-voltage CV LED loads. Manages two independent channels with integrated dynamic white control functionality. Professional solution for 8-53V DC LED systems.

Technical specifications [L840MA0FT2A01]:

Type: 2-channel dimmer with constant voltage PWM output
Input range: 8-53V DC
Maximum output current: 6A per channel
Maximum power: 288W @ 48V DC (144W @ 24V DC, 72W @ 12V DC)
Control inputs: DALI2 DT6/DT8 ×1, Isolated Push (AC/DC 12-265V) ×1
Number of channels: 2
Functionality: integrated Tunable White / DimToWarm control
PWM frequency: 390Hz – 3000Hz (selectable)
Power supply LED indicator
Input/output terminals: 0.05-3 mm² (30-12 AWG)
UL printed circuit board
Protection class: IP20
Operating temperature: -20°C to +50°C
Storage temperature: -40°C to +60°C
Max Tc point: 85°C

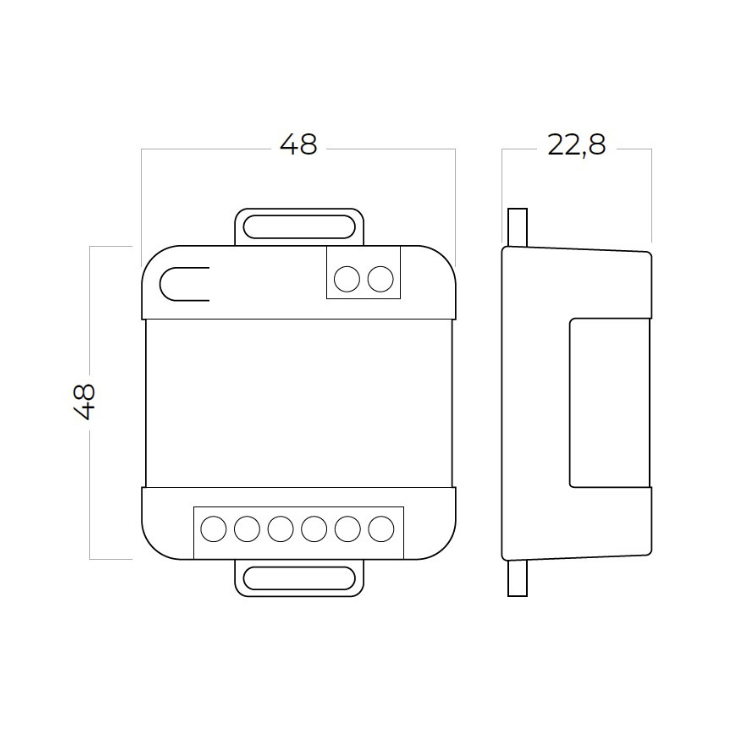

Dimensions: 48 × 48 × 22.8 mm
Use: dry indoor environments
