4-channel CC dimmer with DMX/PUSH/DALI/POT/0-10V/BLE input
Four-channel LED dimmer with constant current PWM output, ideal for precise brightness control of LED modules and fixtures. Compatible with DALI, DMX512-RDM, Bluetooth Low Energy, 0-10V, 1-10V, 100K linear potentiometer, and isolated/non-isolated push buttons. Controllable via the Newlab Go mobile app for Android and iOS. Includes protection against reverse polarity, open circuit, short circuit, over-temperature, and surge voltage.
Technical specifications [DMX-4CC-DIN]:
- Type: 4-channel dimmer with PWM constant current output
- Input voltage range: 8-53V DC
- Output current: from 0.17A to 1.05A per channel (adjustable with L392MA00N0A01 interface)
- Total current in single-channel mode: up to 4.2A
- Maximum output power: 54.6W at 52V DC per channel / 218.4W total
- Parallelizable output channels
- Control inputs: DMX512 RDM ×1, isolated push button ×1, Non-isolated push button ×4, DALI ×1, Linear potentiometer 100K ×4, 0-10V passive (non-isolated) ×4, 1-10V passive (non-isolated) ×4, Bluetooth LE ×1
- PWM frequency: 390 Hz
- Functions: DALI to DMX converter, configurable DMX/DALI/PUSH/POT/BLE modes
- Operating temperature: -20°C ÷ +50°C
- Storage temperature: -40°C ÷ +60°C
- Protection class: IP20
- UL printed circuit board

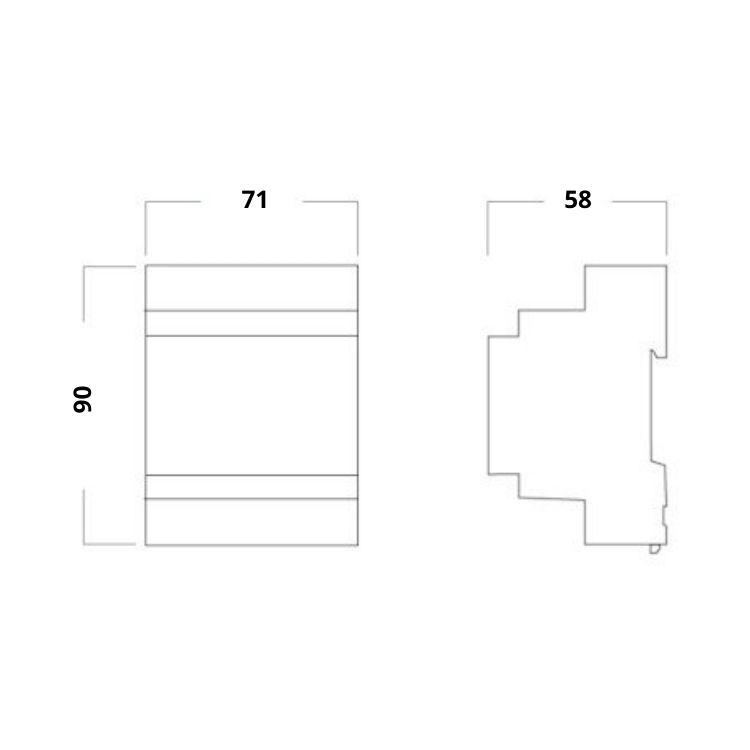

- Dimensions: 90 × 70 × 58 mm
- Warranty: up to 5 years
- Use: dry indoor environments
