4-channel CV dimmer with DMX/PUSH/DALI2/POT/0-10V/BLE input
4-channel constant voltage LED dimmer with DMX/PUSH/DALI2/POT/0-10V/BLE input, ideal for controlling low-voltage CV LED loads. Manages up to four channels with PWM voltage output and configuration via DIP switches. Professional solution for 8-53V DC LED systems.
Technical specifications [L806MA02T4A01]:
- Type: 4-channel dimmer with PWM voltage output
- Input range: 8-53V DC
- Maximum output current: 8A per single channel (32A in single-channel configuration)
- Maximum power: 384W @ 48V DC per single channel (1536W @ 48V DC in single-channel configuration)
- Control inputs: DMX512A-RDM ×1, DALI2 DT6/DT8 ×1, 0-10V / 1-10V ×1, Insulated Push ×4, Potentiometer ×1, Switch ×1, Sensor ×1, Phase-cut ×1, Bluetooth LE ×1
- Sync outputs: PWM ×4
- PWM frequency: 390Hz – 3000Hz – 10000Hz
- Parallelizable output channels
- Functions: DMX512A-RDM master/slave, DALI2 to DMX converter
- Mode selection via DIP switches
- UL printed circuit board
- Protection class: IP20

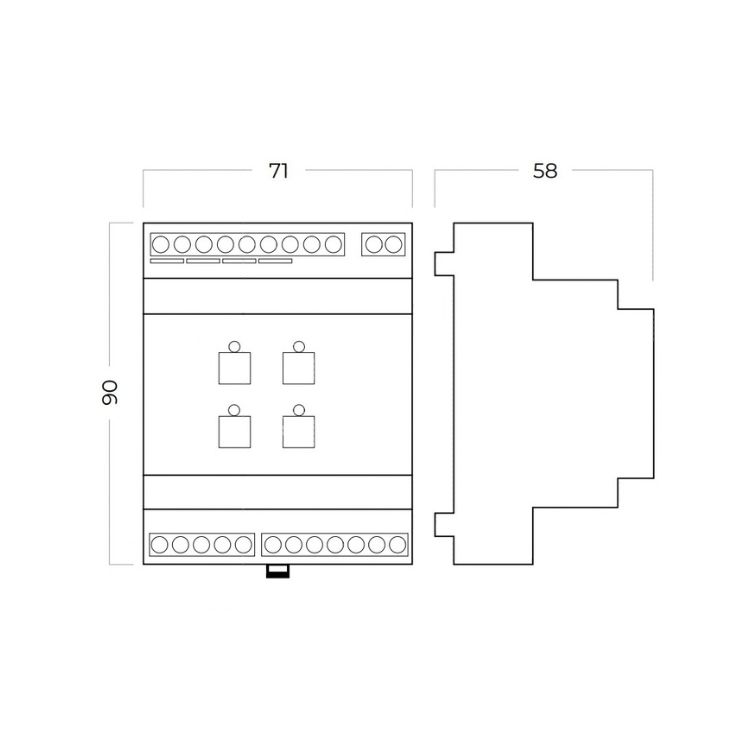

- Dimensions: 90 × 71 × 58 mm
- Use: dry indoor environments
