4-channel CV dimmer with MATTER/PUSH input

4-channel constant voltage LED dimmer with MATTER/PUSH input and PWM voltage output, ideal for controlling low-voltage CV LED loads. Manages up to four independent channels with configuration via DIP switches and supports MATTER or push button control. Professional solution for 8-53V DC LED systems.

Technical specifications [L694MA02T4A01]:

Type: 4-channel dimmer with PWM voltage output
Input range: 8-53V DC
Maximum output current: 8A per channel
Maximum power: 384W @ 48V DC (192W @ 24V DC, 96W @ 12V DC)
Control inputs: MATTER ×1, Push ×4
Operating modes: Monochrome, RGB, RGB + White, Dynamic White
PWM frequency: 390 Hz
Mode configuration via DIP switches
UL printed circuit board
Protection class: IP20

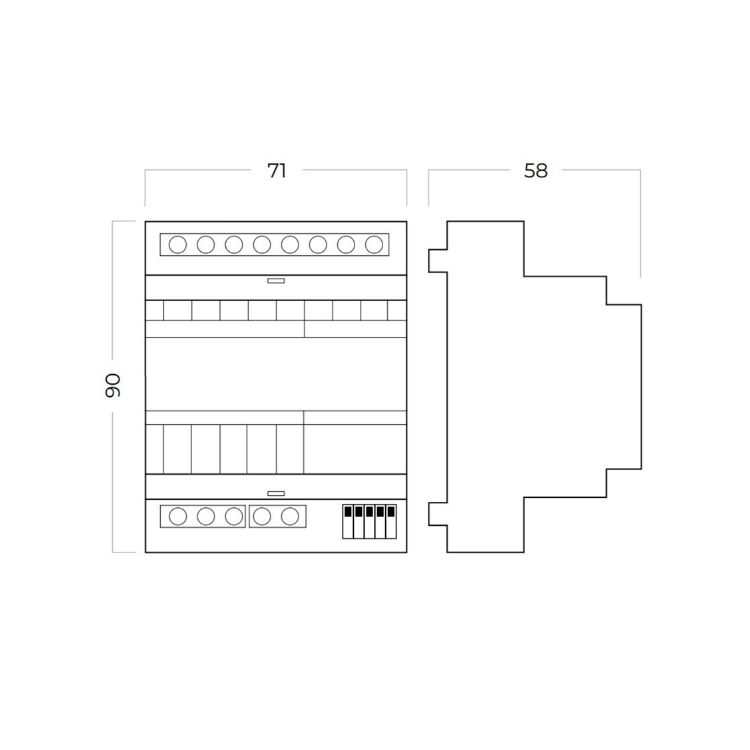

Dimensions: 90 × 71 × 58 mm
Use: dry indoor environments
