5-channel CV dimmer with Wi-Fi/BLE/PUSH input
RGB+TW 5-channel dimmer with Wi-Fi, Bluetooth Low Energy (non-simultaneous) and dual Push inputs, ideal for controlling single-channel, Tunable White, RGB and RGBW LED strips. Compatible with the Oikos app, Alexa and Google Nest, it allows flexible configurations and remote management. Includes built-in protection against reverse polarity, voltage surges, open circuit and overtemperature.
Technical specifications [WIFI-5CV-RGBWW]:
- Type: 5-channel dimmer with PWM voltage output
- Power supply range: 8-53V DC
- PWM output: 8-53V DC, 6A per channel (288W at 48V DC)
- Single-channel configuration: 0-30A (1440W at 48V DC)
- Parallelisable output channels
- Control inputs: Non-isolated push button ×2, Wi-Fi ×1, Bluetooth LE ×1
- Sync outputs: DMX512 RDM ×1, PWM ×5
- PWM frequency: 390 Hz
- Control app: Oikos (Android / iOS)
- Compatibility: Alexa, Google Nest (Wi-Fi mode only)
- Networking: Bluetooth Low Energy (BLE)
- Connectors: spring-loaded quick plug-in 0.25-3.3 mm² (30-12 AWG)
- UL printed circuit board
- Protection class: IP20

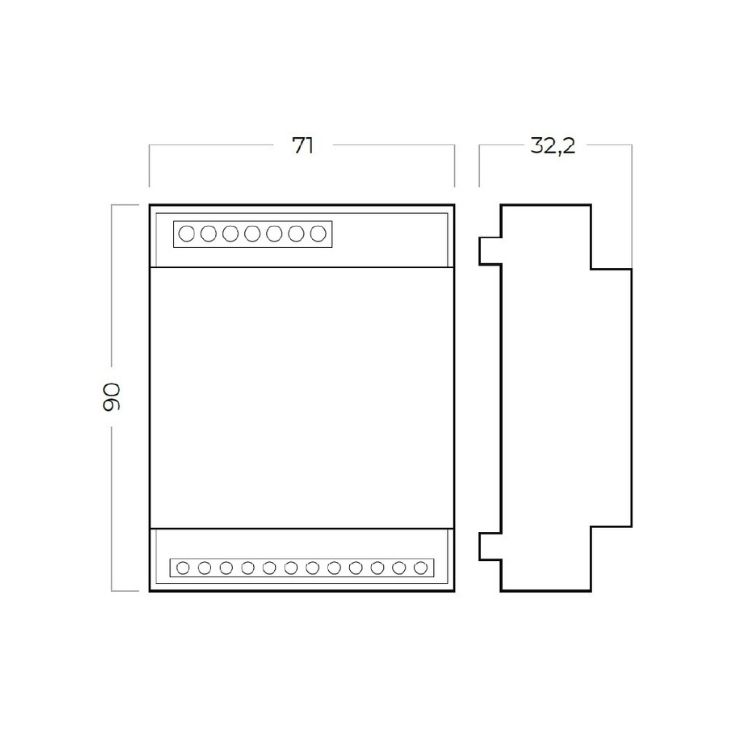

- Dimensions: 90 × 71 × 32.2 mm
- Use: dry indoor environments
