Auto-addressable converter from Wi-Fi/BLE to DALI
Auto-addressable DALI converter with Wi-Fi and Bluetooth Low Energy (non-simultaneous) connectivity and Push input, designed for dimmable power supplies with DALI input. It allows scene storage and recall via the Oikos app and supports up to 16 individually addressable DALI devices. Includes open-circuit and surge protection for safe and reliable operation.
Technical specifications [WIFI-16DALI]:
- Type: Auto-addressable DALI converter with Push / Wi-Fi / Bluetooth interface
- Power supply range: 100-240V AC, 50/60Hz
- Integrated DALI BUS power supply (up to 16 addressable devices)
- Scene storage and recall via Oikos app
- Automatic BUS addressing through Oikos app
- Control inputs: Push ×1, Wi-Fi ×1, Bluetooth ×1
- Sync outputs: DALI ×1
- Networking: Bluetooth Low Energy (BLE)
- Control app: Oikos (Android / iOS)
- Compatibility: Alexa (via Oikos skill), Google Nest (Wi-Fi mode only), IFTTT
- Wire cross-section: 0.05-2.08 mm² (30-14 AWG)
- UL printed circuit board
- Protection class: IP20

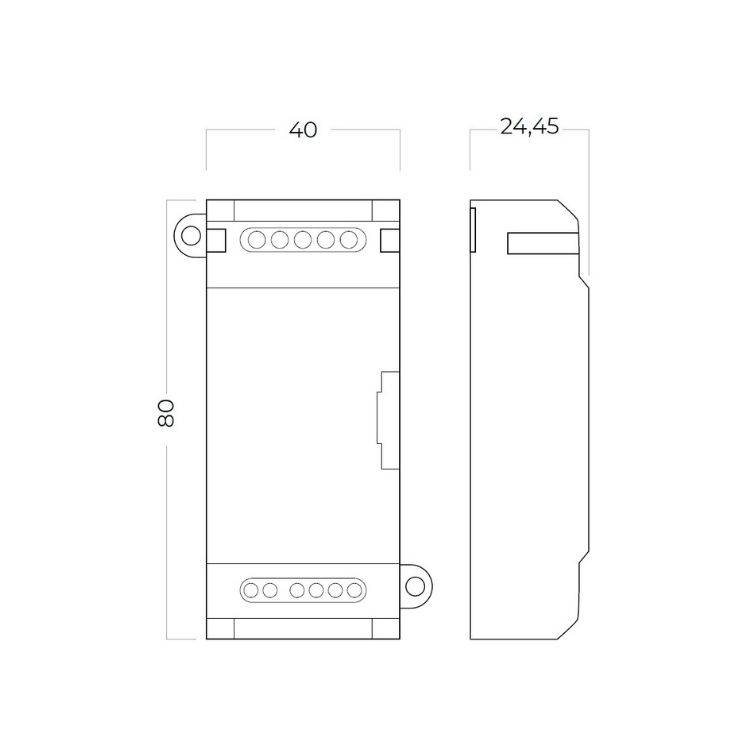

- Dimensions: 80 × 40 × 24.45 mm
- Use: dry indoor environments
