Forrest Show Controller SPI-PUSH/DALI2
Pixel-to-Pixel LED strip show generator with SPI protocol, ideal for creating dynamic RUN lighting effects. Control strip length, direction, and speed via Forrest App (iOS/Android) with Bluetooth Low Energy setup. Compatible with WS2811, WS2812, WS2814, WS2801, WS2808, WS2813, WS2815, WS2818, WS2851, S8208, GS8206, SK6805, SK6812, SK6813, SK688, SK6822, UCS1904, UCS2903, UCS2904, UCS7804, UCS8903, UCS8904 protocols, it allows advanced lighting management and multi-unit synchronization for coordinated scenes.
Technical specifications [DALI2-FORREST]:
- Type: SPI Pixel-to-Pixel LED strip show generator
- Power supply range: 5-24V DC
- Maximum current: 15A
- Control inputs: DALI2 x1, PUSH x1, Phase-cut x1, 0-10V or 1-10V active and passive x1
- Sync output: SPI ×1
- Control and configuration via Forrest App (Bluetooth LE)
- Functions: show start/stop, dimming via app or button
- Possibility to connect multiple modules for synchronized effects
- Connections: 30-12 AWG (0,05-3 mm²)
- UL printed circuit board
- Protection class: IP20

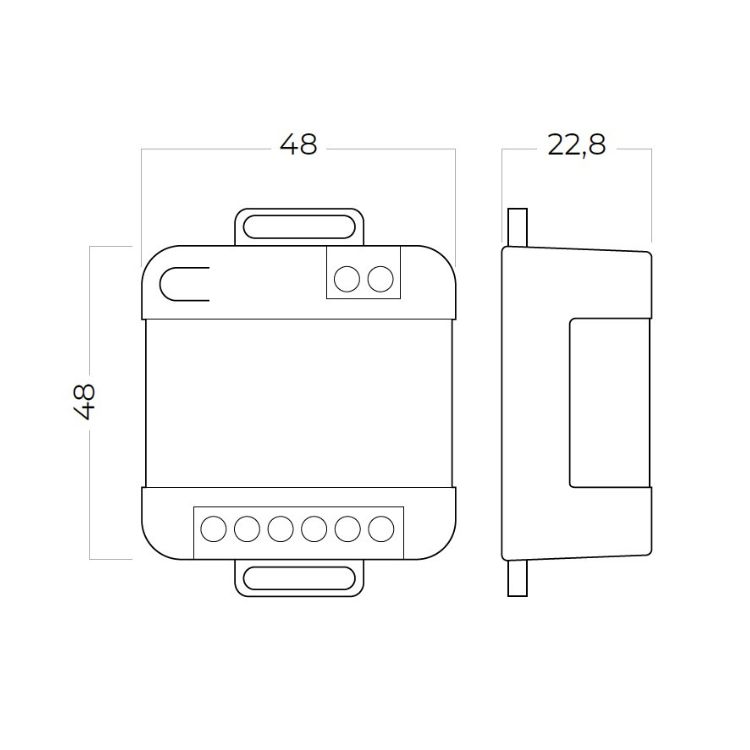

- Dimensions: 48 × 48 × 22.8 mm
- Use: dry indoor environments
