Forrest Show Controller SPI-PUSH
Pixel-to-Pixel LED strip show generator with SPI protocol, ideal for creating dynamic RUN lighting effects. Control strip length, direction, and speed via Forrest App (iOS/Android) with Bluetooth Low Energy setup. Compatible with WS2811, WS2812, WS2814, and GS8208 protocols, it allows advanced lighting management and multi-unit synchronization for coordinated scenes.
Technical specifications [FORREST-SPI]:
- Type: SPI Pixel-to-Pixel LED strip show generator
- Power supply range: 5-24V DC
- Maximum current: 15A
- Maximum power: 360W (at 24V DC)
- Control inputs: isolated Push button ×1
- Sync output: SPI ×1
- Supported protocols: WS2811, WS2812, WS2814, GS8208
- Control and configuration via Forrest App (Bluetooth LE)
- Functions: show start/stop, dimming via app or button
- Possibility to connect multiple modules for synchronized effects
- PWM frequency: 390 Hz
- Connections: 15-30 AWG (0.05-1.65 mm²)
- UL printed circuit board
- Protection class: IP20

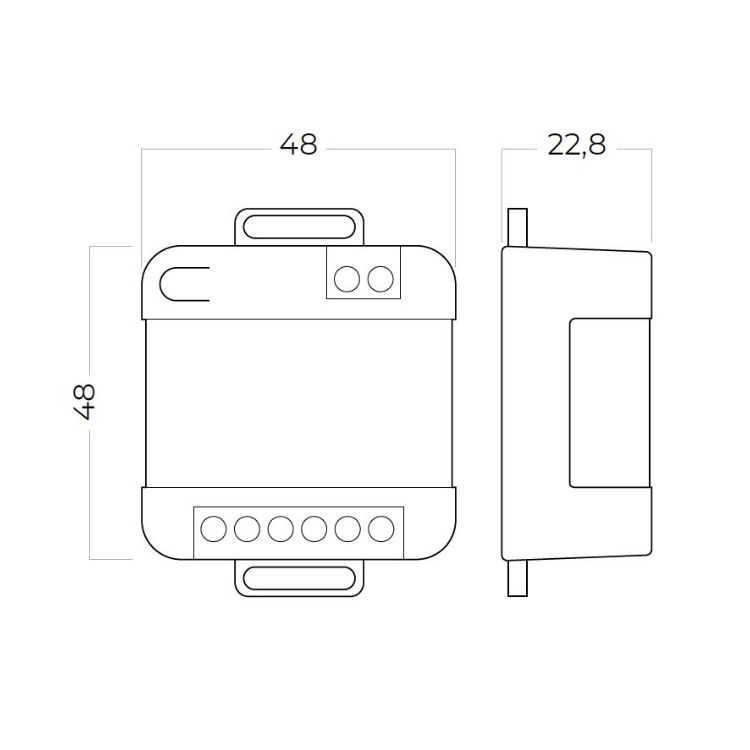

- Dimensions: 48 × 48 × 22.8 mm
- Use: dry indoor environments
