Mono-channel AC phase-cut dimmer with DALI/PUSH input

Single-channel LED dimmer with phase-cut output, designed for controlling resistive loads via DALI signal. Ideal for mains-powered lighting systems, it ensures smooth and accurate brightness regulation. Equipped with built-in protection against overcurrent and voltage spikes for greater reliability and safety. The device must be powered by 230V AC mains and used in dry environments.

Technical specifications [DALI-230V]:

Type: Single-channel phase-cut dimmer
Power supply range: 80-230V AC 50/60Hz
Maximum current: 1A
Maximum power: 230W (for resistive loads)
Electronic/LED loads: maximum power halved compared to rated value (e.g. 110W max @ 220V AC)
Control input: DALI ×1
Conductor cross-section: 14-22 AWG (0.205-2.08 mm²)
UL printed circuit board
Protection class: IP20

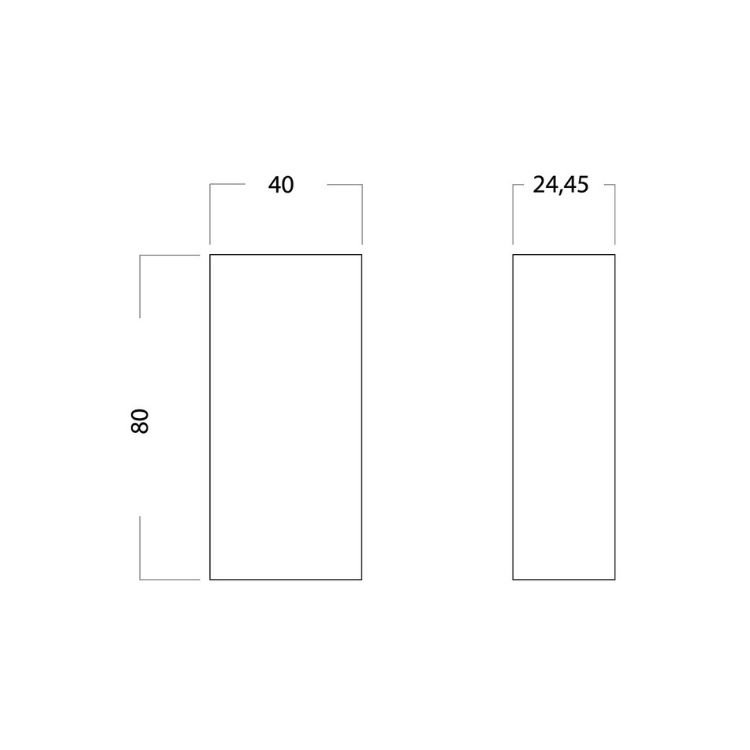

Standard dimensions: 80 × 40 × 24 mm
Dimensions with accessories: 100 × 40 × 24 mm
Use: dry indoor environments
