Mono-channel AC phase-cut dimmer with DALI2/PUSH input
Single-channel LED dimmer with phase-cut output, designed for controlling mains voltage LED strips via DALI2 or PUSH signal. Ideal for mains-powered lighting systems, it ensures smooth and accurate brightness regulation. Equipped with built-in protection against overcurrent and voltage spikes for greater reliability and safety. The device must be powered by 110-230V AC mains and used in dry environments.
Technical specifications [DALI2-230V-AI]:
- Type: Single-channel phase-cut dimmer
- Power supply range: 110-230V AC 50/60Hz
- Maximum current: 1A
- Maximum power: 110W @110V AC, 220W @220V AC, 230W @230V AC
- Output type: AI Edge MOSFET
- Control input: DALI2 ×1, PUSH ×1
- Accepted wire size: 26-14 AWG (0.12-2.5 mm²)
- Protection against overcurrent and surge voltage
- Protection class: IP20

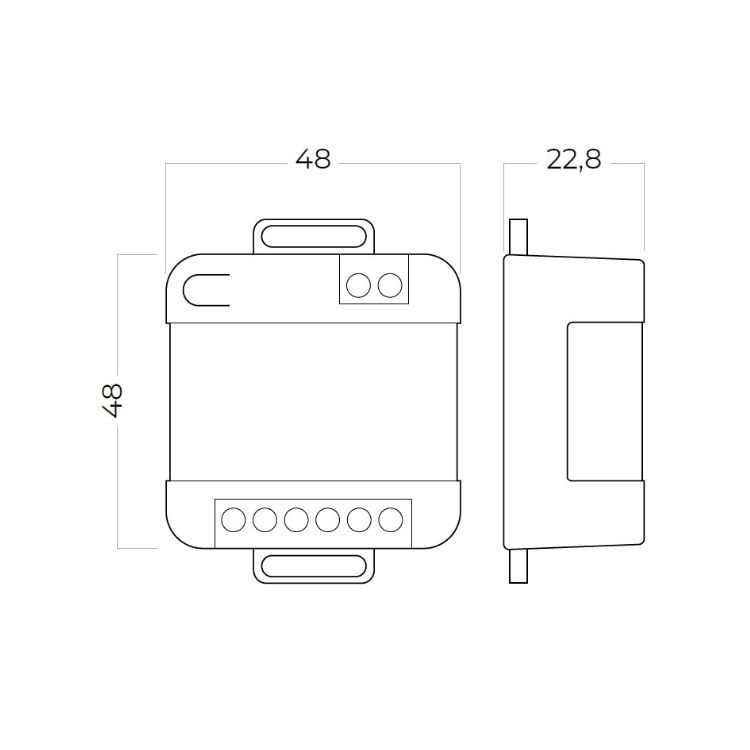

- Standard dimensions: 48 × 48 × 22.8 mm
- Use: dry indoor environments
