Mono-channel AC phase-cut dimmer with PUSH input

Single-channel LED dimmer with phase-cut output, ideal for controlling resistive and compatible LED loads on mains voltage. Operated via a non-isolated push button, it integrates protections against overcurrent, voltage surges, and open circuit. Compact and reliable solution for 230V AC lighting systems.

Technical specifications [PUSH-230V]:

Type: Single-channel dimmer with phase-cut output
Input range: 80-230V AC 50/60Hz
Maximum resistive load: 1A
Maximum power: 350W @230V AC
Control input: Non-isolated Push button ×1
Connection: 14-22 AWG conductors (0.205-2.08 mm²)
Integrated protections: open circuit, voltage surges, overcurrent
Not suitable for inductive loads or non-Pure Sine Wave UPS
UL printed circuit board
Protection class: IP20

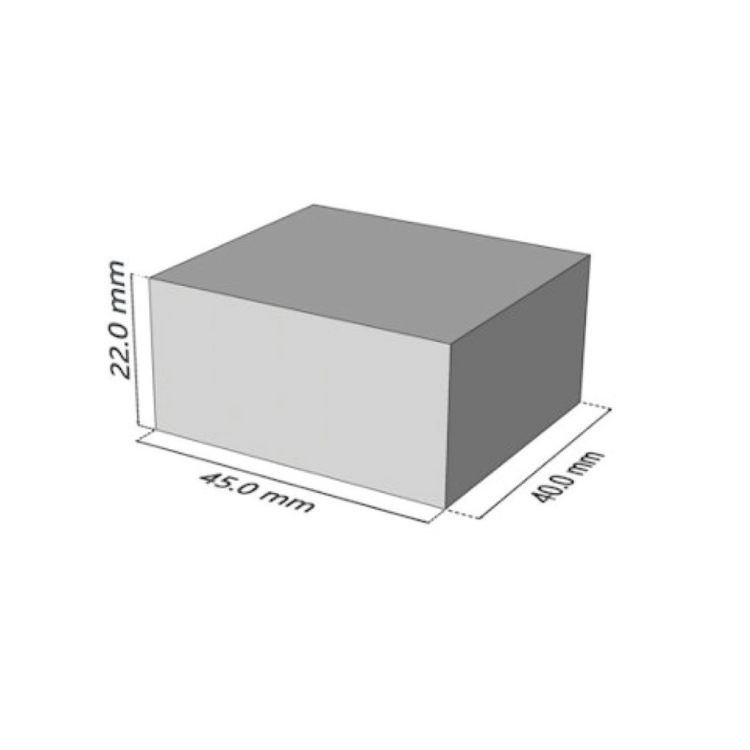

Dimensions: 40 × 45 × 22 mm
Use: dry indoor environments

Seleziona i prodotti e aggiungili al carrello. Clicca su "Dettagli" per visualizzare le loro specifiche tecniche

Item code

Name

Notice

Actions

216

Mono-channel AC phase-cut dimmer with PUSH input
