Mono-channel CC dimmer with DALI input for 48V Track

Constant current LED dimmer with DALI control, designed for low-voltage A.A.G. Stucchi track systems. Ensures smooth and precise brightness regulation through hybrid/analog dimming. Output programmable from 0.25A to 1.05A in 64 steps via dedicated interface (L392MA00N0A01, sold separately). Includes built-in protection against reverse polarity, short circuit, open circuit, and voltage spikes.

Technical specifications [STU-CC-PROG]:

• Type: Constant current dimmer with hybrid/analog dimming
• Power supply range: 10-53V DC
• Programmable current output: 0.25-1.05A (64 steps)
• Output voltage range: 2.8-42V DC
• Default current: 0.35A
• PWM frequency: 390 Hz
• Control input: DALI ×1
• Input connection: solder terminals
• Output connection: vertical quick connectors AWG18-24
• UL printed circuit board
• Protection class: IP20
• Integrated EMC filter compliant with EN55105

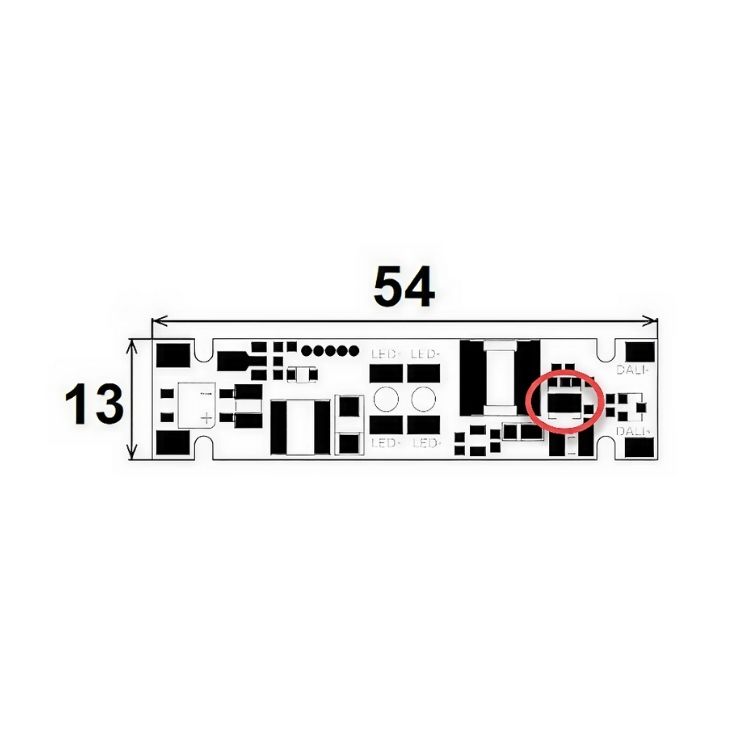

• Dimensions: 54 × 13 × 10 mm
• Use: dry indoor environments
