Mono-channel CC dimmer with DALI/PUSH/POT/0-10V input

Single-channel constant current LED dimmer with PWM output, designed for precise brightness control of low-voltage LED modules. Compatible with DALI, 0-10V, 1-10V, 100K linear potentiometer, and isolated push button controls. Includes built-in protection against polarity reversal, open circuit, over-temperature, and surge voltage. Output current adjustable via optional interface L392MA00N0A01.

Technical specifications [DALI-CC]:

Type: Single-channel dimmer with PWM constant current output
Power supply range: 8-53V DC
Output current: from 0.17A to 1.05A (adjustable)
Maximum output power: 54.6W (at 52V DC)
PWM frequency: 390 Hz
Control inputs: isolated push button ×1, DALI ×1, Linear potentiometer 100K ×1, 0-10V passive (non-isolated) ×1, 1-10V passive (non-isolated) ×1
Default current: 0.35A
Operating temperature: -20°C ÷ +50°C
Protection rating: IP20
UL certified PCB

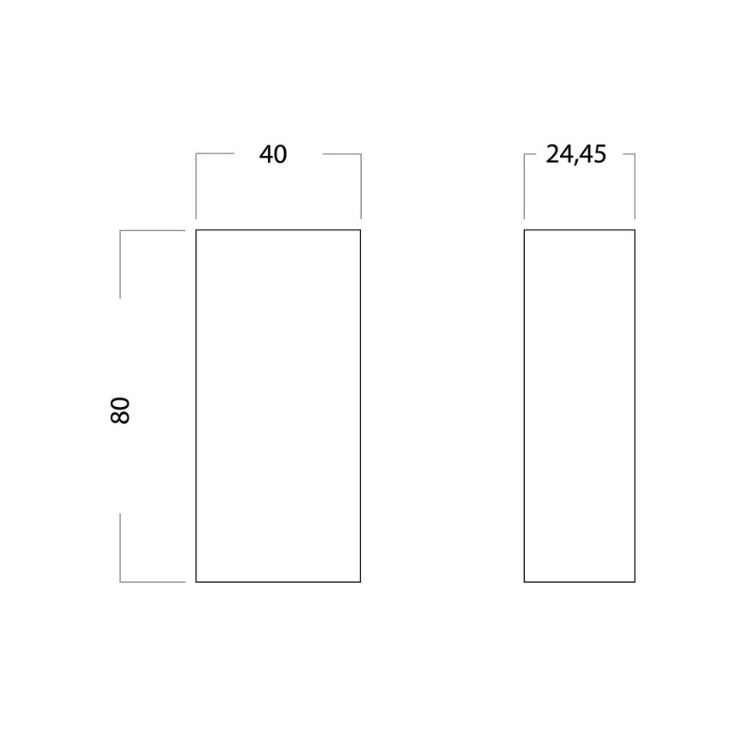

Dimensions: 80 × 40 × 24.45 mm
Warranty: up to 5 years
Use: dry indoor environments
