Mono-channel CC dimmer with PUSH input

LED dimmer with PWM voltage output and remote control via non-isolated push button. Designed for smooth brightness adjustment of low-voltage LED strips, ensuring stable operation and long-lasting performance. Includes integrated protection against reverse polarity, open circuit, and voltage spikes.

Technical specifications:

• Type: Dimmer with PWM voltage output
• Input voltage range: 8-28V DC
• PWM output: 8-28V DC
• Maximum current: 4A
• Maximum output power: 96W (at 24V DC)
• Control input: Non-isolated push button ×1
• Sync output: PWM ×1
• PWM frequency: 350 Hz
• UL printed circuit board
• Protection class: IP20

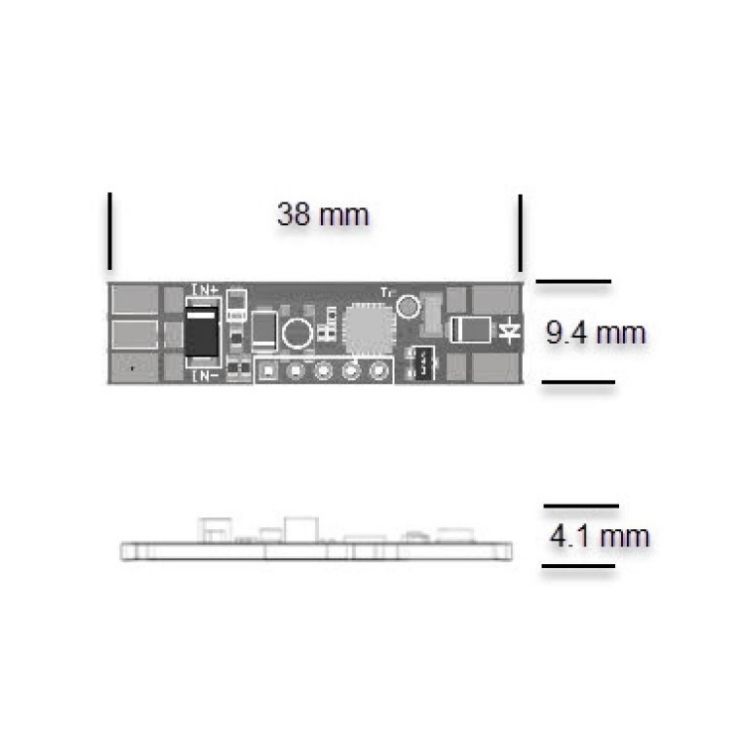

• Dimensions: 38 × 9.4 × 4.1 mm
• Use: dry indoor environments
