Mono-channel CV dimmer with DALI/PUSH/POT/0-10V/BLE input
Single-channel constant voltage LED dimmer with PWM output, designed for precise brightness control of LED strips and modules. Compatible with DALI, Bluetooth Low Energy, 0-10V, 1-10V, 100K linear potentiometer, and isolated push button controls. Can be managed via the Newlab Go mobile app for Android and iOS. Includes integrated protection against polarity reversal, open circuit, over-temperature, and surge voltage.
Technical specifications [BLE-CV]:
- Type: Single-channel dimmer with PWM voltage output
- Power supply range: 8-53V DC
- PWM output: 8-53V DC
- Maximum current: 12A
- Maximum output power: 576W (at 48V DC)
- PWM frequency: 390 Hz
- Control inputs: isolated push button ×1, DALI ×1, Linear potentiometer 100K ×1, 0-10V passive (non-isolated) ×1, 1-10V passive (non-isolated) ×1, Bluetooth LE ×1
- Sync output: PWM ×1
- Operating temperature: -20°C ÷ +50°C
- Protection rating: IP20
- UL certified PCB

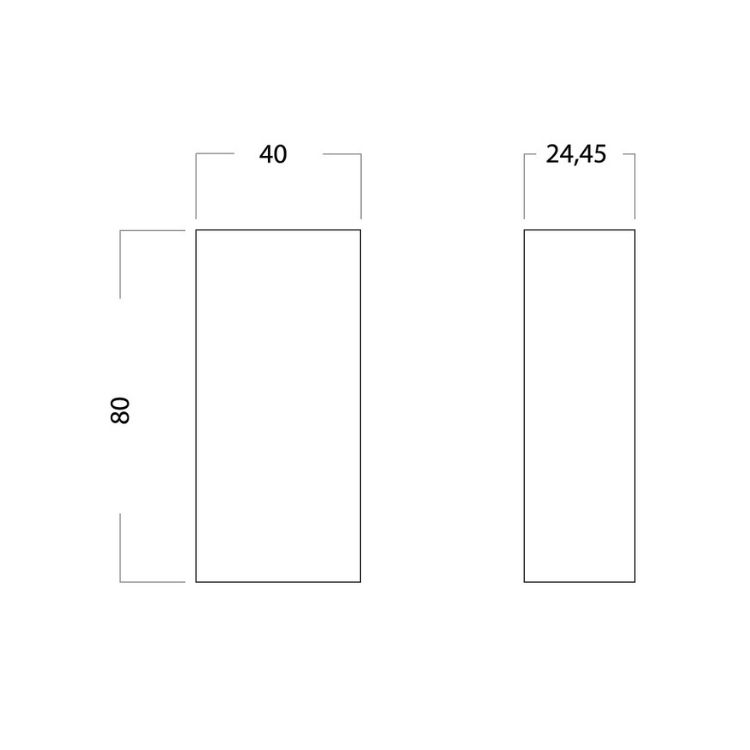

- Dimensions: 80 × 40 × 24.45 mm (100 mm with accessories)
- Warranty: up to 5 years
- Use: dry indoor environments
