Mono-channel CV dimmer with DALI/PUSH/POT/0-10V input, independent use (UL)
Single-channel constant voltage LED dimmer with PWM output, ideal for precise brightness control of low-voltage LED strips. Compatible with DALI systems, isolated push button, linear potentiometer, and 0-10V/1-10V signals, it ensures high flexibility and reliability for professional installations. UL certified, it guarantees safety, efficiency, and long-term performance. Includes protection against polarity reversal, open circuit, surge voltage, and over-temperature.
Technical specifications [DALI-CV-UL]:
- Type: Single-channel constant voltage dimmer with PWM output
- Power supply range: 8-48V DC
- PWM output: 8-48V DC
- Maximum current: 12A
- Maximum output power: 576W (at 48V DC)
- PWM frequency: 390 Hz
- Control inputs: isolated push button ×1, DALI ×1, Linear potentiometer 100K ×1, 0-10V Passive ×1, 1-10V Passive ×1
- Sync output: PWM ×1
- Certification: UL File Number E511343 – IECEE CB DK-93122-UL
- Protection rating: IP20
- Protection against polarity reversal, open circuit, surge voltage, and over-temperature

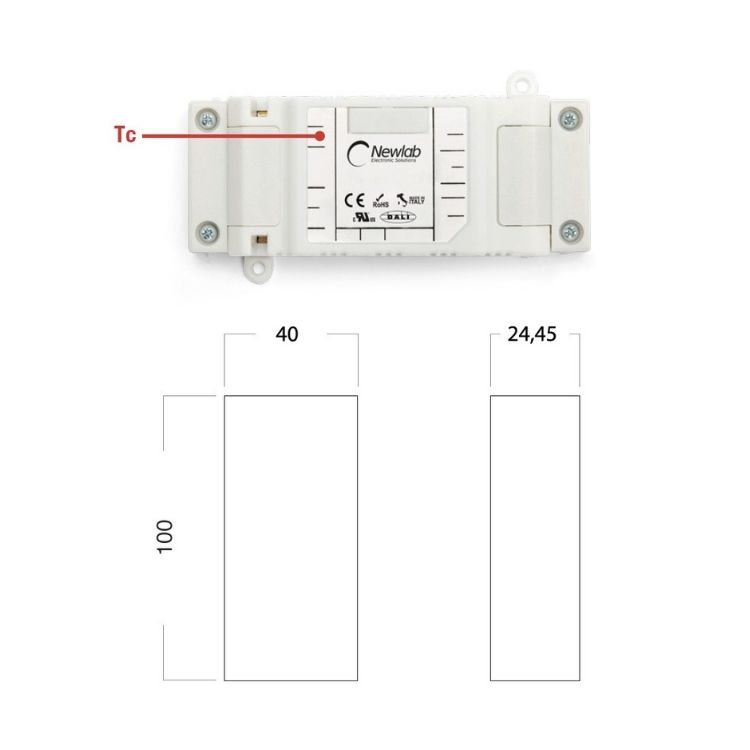

- Dimensions: 100 × 40 × 24.45 mm
- Warranty: up to 5 years
- Use: dry indoor environments
