Mono-channel CV dimmer with DALI/PUSH/POT/0-10V input (UL)
Single-channel constant voltage LED dimmer with PWM output, designed for precise brightness adjustment of low-voltage LED strips. Compatible with DALI systems, isolated push button, linear potentiometer, and 0-10V/1-10V signals, it offers maximum flexibility and professional integration. UL certified, ensuring high safety and reliability standards. Includes protection against polarity reversal, open circuit, surge voltage, and over-temperature.
Technical specifications [DALI-CV]:
- Type: Single-channel constant voltage dimmer with PWM output
- Power supply range: 8-48V DC
- PWM output: 8-48V DC
- Maximum current: 12A
- Maximum output power: 576W (at 48V DC)
- PWM frequency: 390 Hz
- Control inputs: isolated push button ×1, DALI ×1, Linear potentiometer 100K ×1, 0-10V Passive (not isolated) ×1, 1-10V Passive (not isolated) ×1
- Sync output: PWM ×1
- Certification: UL File Number E511343 – IECEE CB DK-93125-UL
- Protection rating: IP20
- Protection against polarity reversal, open circuit, surge voltage, and over-temperature

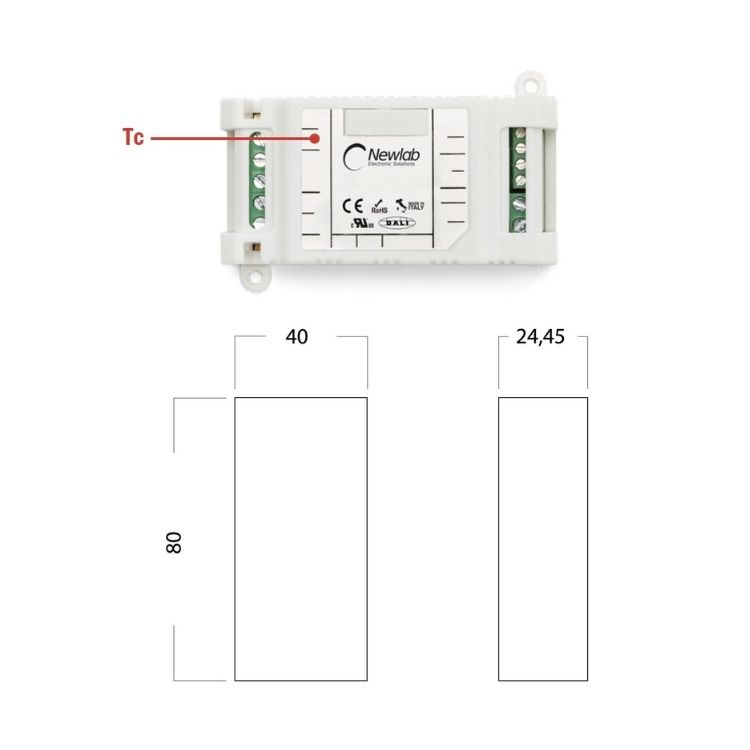

- Dimensions: 80 × 40 × 24.45 mm
- Warranty: up to 5 years
- Use: dry indoor environments
