Mono-channel CV dimmer with DALI/PUSH/POT/1-10V input

Single-channel constant voltage LED dimmer with PWM output, designed for precise brightness control of low-voltage LED strips. Compatible with multiple control systems DALI, isolated push button, linear potentiometer, and 0-10V/1-10V signals, it ensures flexibility and easy integration into any lighting installation.

Technical specifications [DALI-CV]:

Type: Single-channel constant voltage dimmer with PWM output
Power supply range: 8-53V DC
PWM output: 8-53V DC
Maximum current: 12A
Maximum output power: 576W (at 48V DC)
PWM frequency: 390 Hz
Control inputs: isolated push button ×1, DALI ×1, Linear potentiometer 100K ×1, 0-10V Passive ×1, 1-10V Passive ×1
Sync output: PWM ×1
Protection rating: IP20
Protection against polarity reversal, open circuit, over-temperature, and surge voltage
UL certified PCB

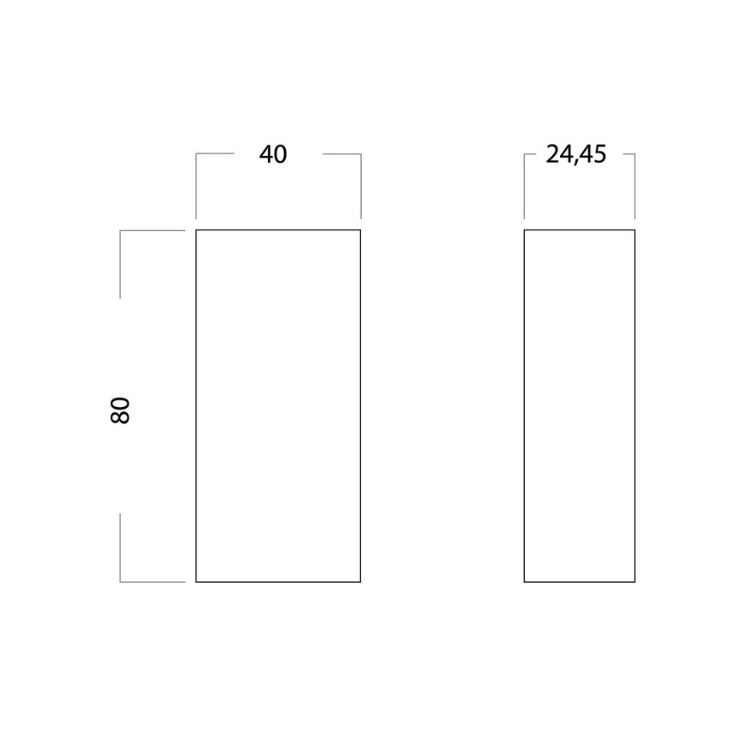

Dimensions: 80 × 40 × 24.45 mm
Warranty: up to 5 years
Use: dry indoor environments

Seleziona i prodotti e aggiungili al carrello. Clicca su "Dettagli" per visualizzare le loro specifiche tecniche

Item code

Name

Notice

Actions

205

Mono-channel CV dimmer with DALI/PUSH/POT/1-10V input
