Mono-channel CV dimmer with DALI2 input, independent use (UL)

Single-channel constant voltage LED dimmer with PWM output, designed for precise brightness control of low-voltage LED strips. Featuring DALI2 input certified to IEC 62386 standard, it ensures compatibility with professional lighting systems and reliable performance. Supplied with terminal covers and cable clamp, it is UL certified and includes built-in protection against polarity reversal, open circuit, surge voltage, and over-temperature.

Technical specifications [DALI2-CV-UL]:

Type: Single-channel constant voltage dimmer with PWM output
Power supply range: 8-48V DC
PWM output: 8-48V DC
Maximum current: 12A
Maximum output power: 576W (at 48V DC)
PWM frequency: 390 Hz
Control input: DALI2 ×1 (IEC 62386 certified)
Sync output: PWM ×1
Certifications: UL File Number E511343 – IECEE CB DK-93122-UL
Protection rating: IP20
Operating temperature: -20°C ÷ +50°C

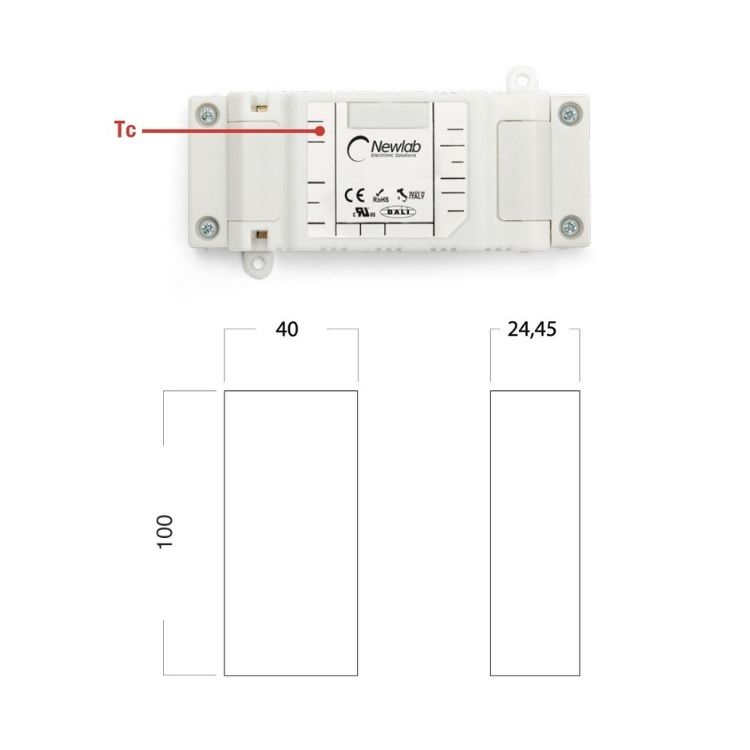

Dimensions: 100 × 40 × 24.45 mm
Warranty: up to 5 years
Use: dry indoor environments
