Mono-channel CV dimmer with PHASE-CUT/DALI/PUSH/POT/0-10V input (UL)

Single-channel LED dimmer with PWM voltage output, ideal for precise brightness control of low-voltage LED strips. Equipped with multiple control inputs (isolated push button, DALI, 100K linear potentiometer, 0-10V and 1-10V passive non-isolated) and updated firmware for optimized performance. Includes built-in protection against polarity reversal, open circuit, surge voltage, and over-temperature.

Technical specifications [PHASE-CUT-CV-UL]:

  • Type: Single-channel dimmer with PWM voltage output
  • Power supply range: 8-48V DC
  • PWM output: 8-48V DC
  • Maximum current: 12A
  • Maximum output power: 576W (at 48V DC)
  • PWM frequency: 390 Hz
  • Control inputs: isolated push button ×1, DALI ×1, Linear potentiometer 100K ×1, 0-10V passive (non-isolated) ×1, 1-10V passive (non-isolated) ×1
  • Sync output: PWM ×1
  • Certifications: UL File Number E511343 – IECEE CB DK-93122-UL
  • Protection rating: IP20
  • Operating temperature: -20°C ÷ +50°C

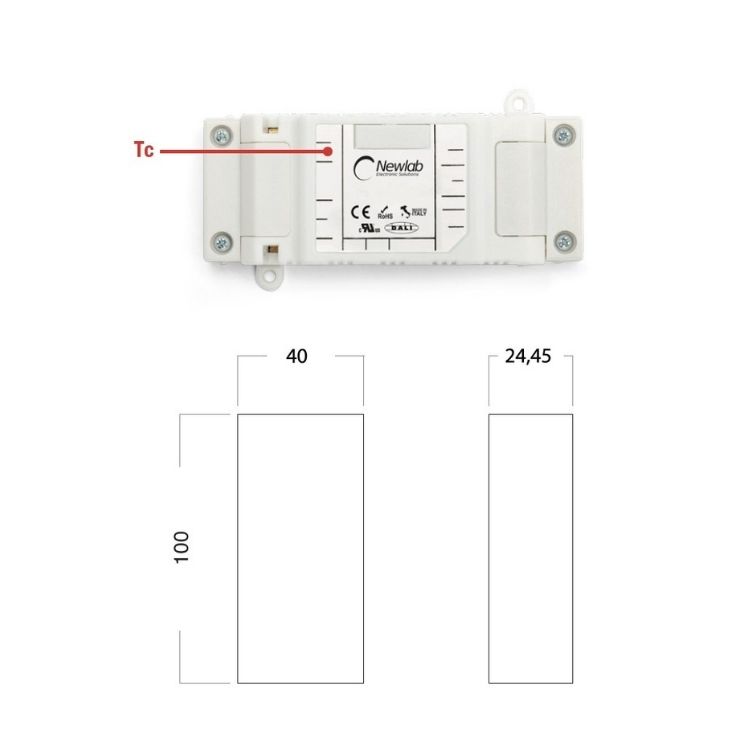

  • Dimensions: 100 × 40 × 24.45 mm
  • Warranty: up to 5 years
  • Use: dry indoor environments
