Mono-channel CV dimmer with RADIO/PUSH input

Compact single-channel LED dimmer with PWM voltage output, controllable via radio signal or Push button. Ideal for low-voltage lighting systems, it allows precise brightness control and manages up to 10 connected devices. Includes protections against polarity reversal, open circuit, and voltage surges for reliable and safe operation.

Technical specifications [RADIO-CV-RX]:

Type: Compact single-channel dimmer with PWM voltage output
Power supply range: 8-53V DC
PWM output: 8-53V DC
Maximum current: 12A
Maximum power: 576W (at 48V DC) / 288W (at 24V DC) / 144W (at 12V DC)
Control inputs: Radio ×1, Push ×1
Sync output: PWM ×1
Maximum controllable devices: 10
PWM frequency: 390 Hz
RF compatibility: device L662MA0FF4A01
Connection terminals: 0.05-3 mm² (30-12 AWG)
UL printed circuit board
Protection class: IP20

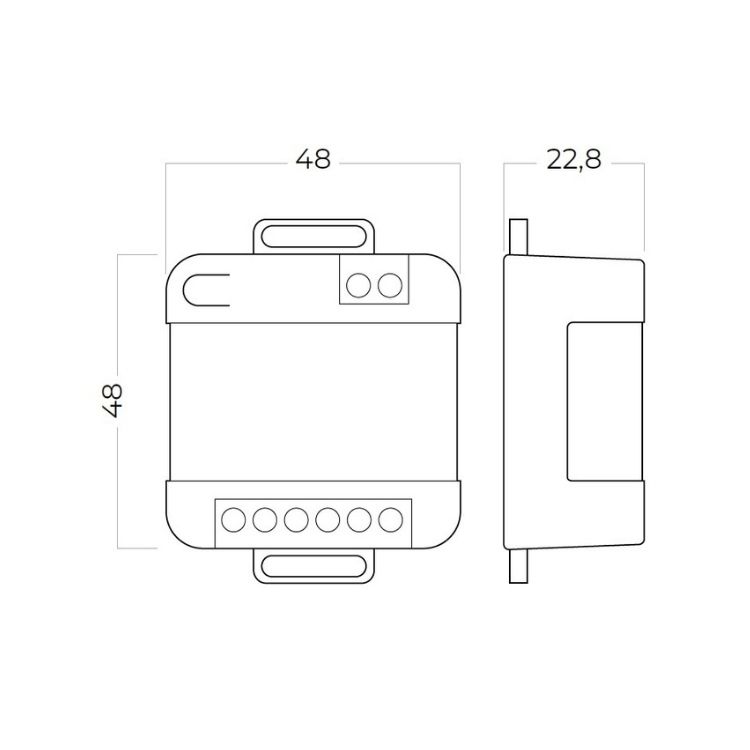

Dimensions: 48 × 48 × 22.8 mm
Use: dry indoor environments
