Mono-channel CV with PUSH/POT/0-10V/1-10V input
Single-channel LED dimmer with PWM voltage output, controllable via Push input, Potentiometer, or 0-10V / 1-10V signal. Designed for precise brightness adjustment in low-voltage systems, it includes an internal menu to set dimming curve, fade in/out, and flicker-free frequency. Features night light and double-click maximum brightness. Includes protections against polarity reversal, open circuit, and voltage surges.
Technical specifications [PUSH-CV]:
- Type: Single-channel dimmer with PWM voltage output
- Power supply range: 8-53V DC
- PWM output: 8-53V DC
- Maximum current: 12A
- Maximum power: 576W (at 48V DC)
- Control inputs: Push / 0-10V / 1-10V / Potentiometer
- Sync output: PWM ×1
- PWM frequency: 390 Hz
- Special functions: night light, max brightness on double click
- Internal setup menu for dimming curve, fade, and frequency
- RF controllable (pair with device L662MA0FF4A01)
- Connection terminals: 0.05-3 mm² (30-12 AWG)
- UL printed circuit board
- Protection class: IP20

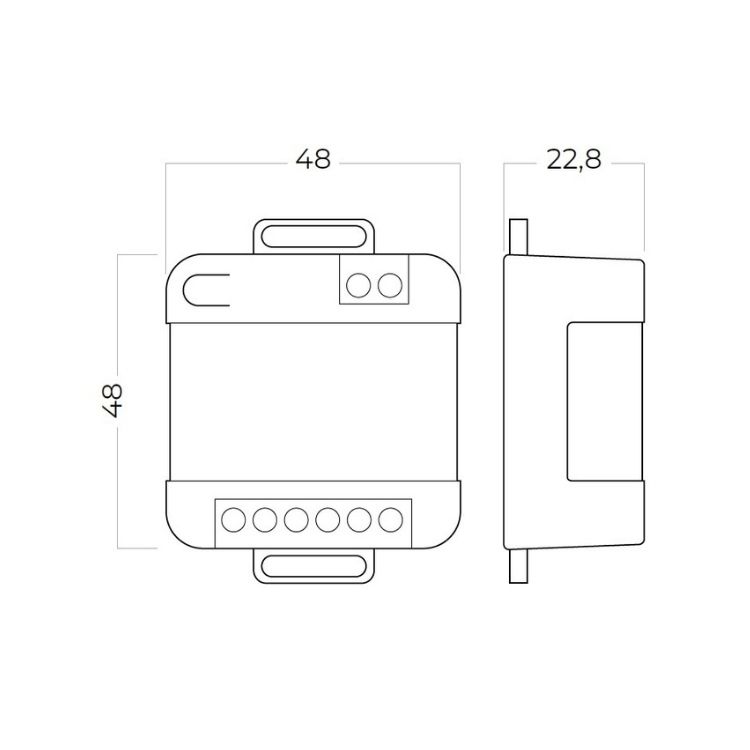

- Dimensions: 48 × 48 × 22.8 mm
- Use: dry indoor environments
