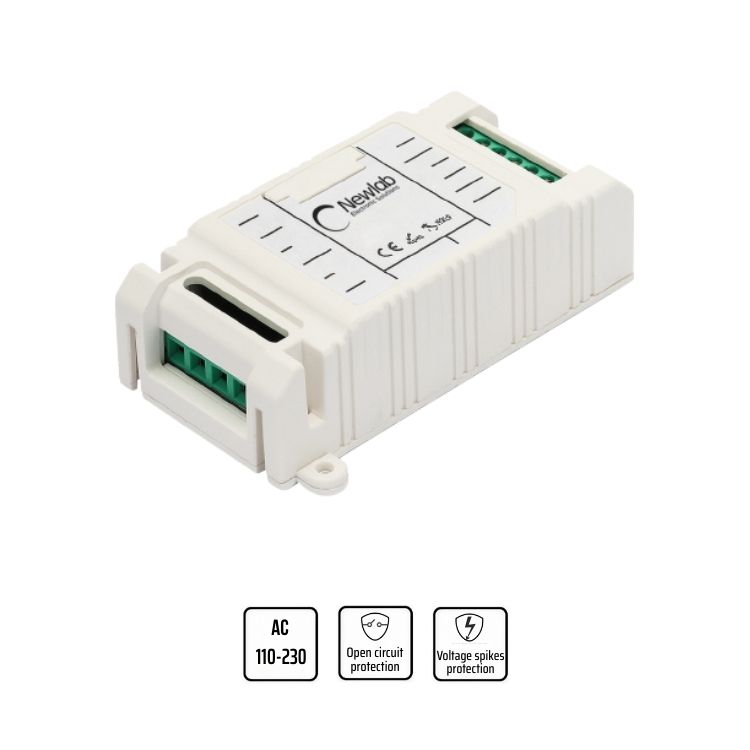

Phase-Cut DALI Broadcast Converter 230V
DALI Broadcast converter with Phase-Cut input, designed for power supplies and lamps with DALI interface. It includes an integrated DALI BUS power supply for up to 16 devices, providing stable and accurate control. Compact and safe, it’s ideal for integrating DALI systems with phase-cut dimming. Includes open-circuit and surge protection.
Technical specifications [PHASE-CUT-DALI]:
- Type: Phase-Cut converter with DALI Broadcast output
- Power supply range: 110-230V AC
- Integrated DALI BUS power supply (up to 16 devices)
- Control input: Phase-Cut
- Sync outputs: DALI ×1
- IN/OUT terminals: 0.05-1.5 mm² (30-15 AWG)
- Power connection: 0.05-2.08 mm² (30-14 AWG)
- UL printed circuit board
- Protection class: IP20
- Dimensions: 80 × 40 × 24.45 mm
- Use: dry indoor environments
