SSR relay controllable via Wi-Fi 1RELÈ and voice assistant
Wi-Fi module with solid-state relay (SSR) output for switching a non-dimmable AC load on and off. Compatible with the Oikos app, Alexa, and Google Nest voice assistants, allowing remote and voice-controlled operation. Includes built-in protection against open circuit, short circuit, and voltage surges, with internal 3A fuse for enhanced safety.
Technical specifications [WIFI-1RELE]:
- Type: Wi-Fi module with SSR relay output
- Power supply range: 100-240V AC
- Maximum output current: 2A RMS (resistive load)
- Output: 1 SSR relay for non-dimmable loads
- Control inputs: Non-isolated push button ×1, Wi-Fi ×1
- Compatibility: Oikos app, Alexa, Google Nest, IFTTT
- Networking: Bluetooth Low Energy (BLE)
- Status indicators: Power LED ×1, Output LED ×1
- UL printed circuit board
- Protection class: IP20

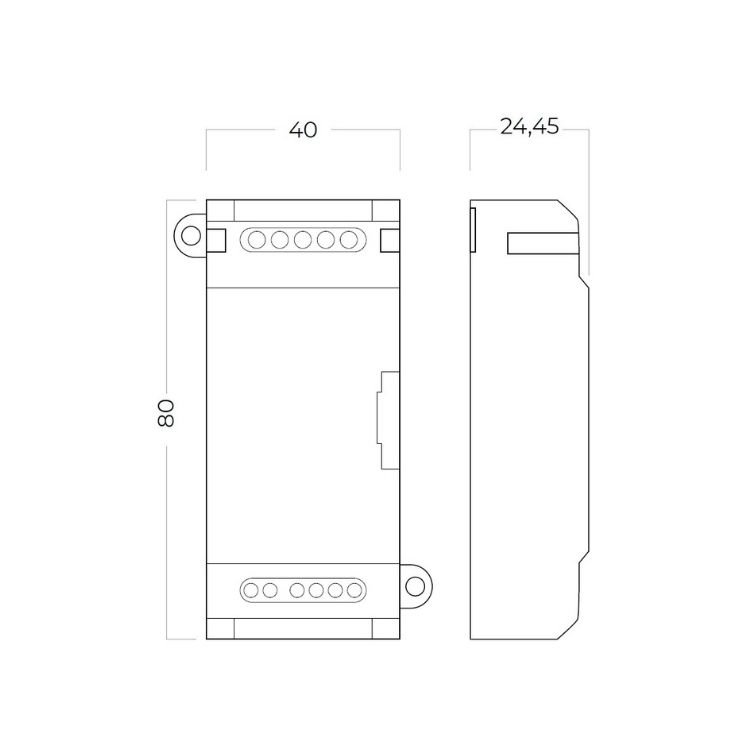

- Dimensions: 80 × 40 × 24.45 mm
- Use: dry indoor environments
