Touch Dimmer 10-26V PWM with Remote Sensor
Single-channel dimmer with PWM voltage output, designed for precise brightness control via remote touch sensor. Operates with 10 to 26 V DC power supply, current adjustable from 0 to 2 A (up to 48 W at 24 V DC). Features PWM sync output and touch sensor input with included 250 mm cable. Includes protection against reverse polarity, open circuit, and voltage spikes. Brightness level memory retained after power loss. Suitable for dry environments. Compact size and UL certified PCB.
- Type: Single-channel dimmer with PWM voltage output
- Power supply range: 10-26 V DC
- PWM output: 10-26 V DC, current 0 to 2 A (max 48 W at 24 V DC)
- Control input: Touch sensor ×1 (250 mm cable included)
- Sync output: PWM ×1
- PWM frequency: 350 Hz
- Protection: reverse polarity, open circuit, voltage spikes
- Protection rating: IP20
- UL certified PCB

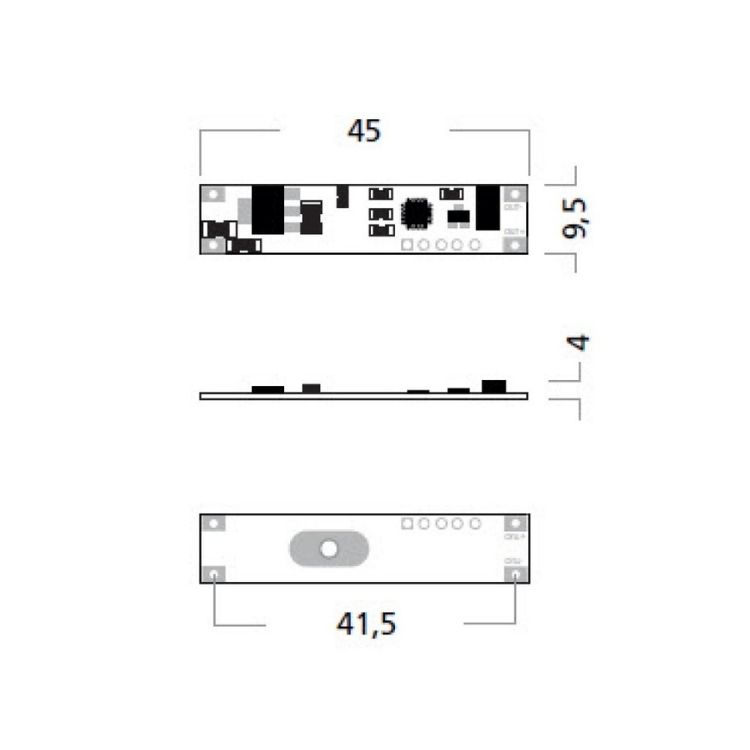

- Dimensions: 9.5 × 45 × 4 mm
- Use: dry environments
- Brightness level memory retained after power off
