Wi-Fi/BLE to DALI broadcast converter
DALI Broadcast converter with Wi-Fi, Bluetooth Low Energy (non-simultaneous) and Push input, ideal for controlling dimmable power supplies with DALI interface. Includes an integrated DALI bus power supply for up to 16 devices and is compatible with the Oikos app and Alexa or Google voice assistants. Equipped with open-circuit and surge protection for stable and safe operation.
Technical specifications [WIFI-DALI]:
- Type: DALI Broadcast converter with Push / Wi-Fi / Bluetooth interface
- Power supply range: 100-240V AC, 50/60Hz
- Integrated DALI bus power supply (up to 16 devices)
- Control inputs: Push ×1, Wi-Fi ×1, Bluetooth ×1
- Sync outputs: DALI ×1
- Special functions: double click = maximum intensity, long press = night light
- Networking: Bluetooth Low Energy (BLE)
- Control app: Oikos (Android / iOS)
- Compatibility: Alexa (via Oikos skill), Google Nest (Wi-Fi mode only), IFTTT
- Wire cross-section: 0.05-1.5 mm² (30-15 AWG)
- UL printed circuit board
- Protection class: IP20

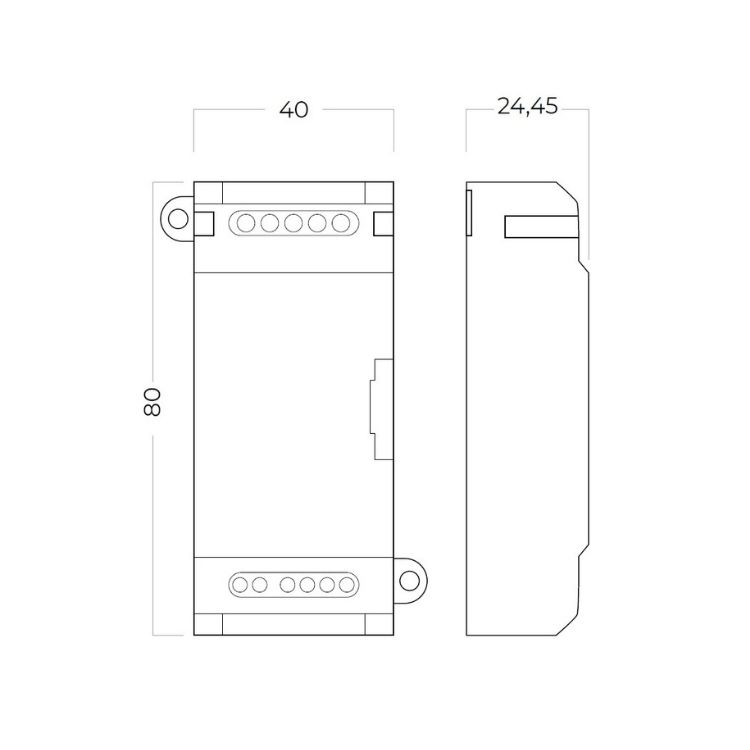

- Dimensions: 80 × 40 × 24.45 mm
- Use: dry indoor environments
